COMPUSHIFT II Transmission Controller



COMPUSHIFT II

Compushift II

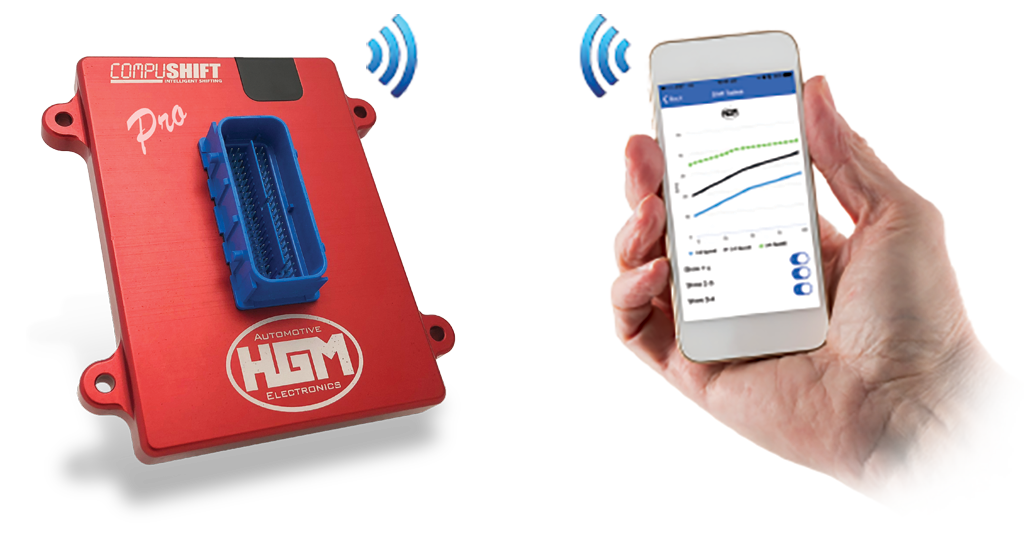

COMPUSHIFT II operates automatic shifting, paddle shifting, and torque converter clutch lock-up for a wide variety of transmissions, allowing the owner to customize performance and the driving experience.

No laptop is needed to program the COMPUSHIFT II, but a PC can be connected via the USB port for system software updates and tuning if desired. The system is delivered with versatile factory-set programming for a wide variety of transmission and engine combinations. Throttle position measurement, needed for proper transmission shift timing and control, can be taken from an existing fuel injection system signal (harness provided), or a throttle position sensor can be used for gasoline carbureted engines or mechanical injection diesels.

Dual CAN buses can connect to existing engine management or body control computers. A MAP sensor can be connected for turbocharged applications if needed.

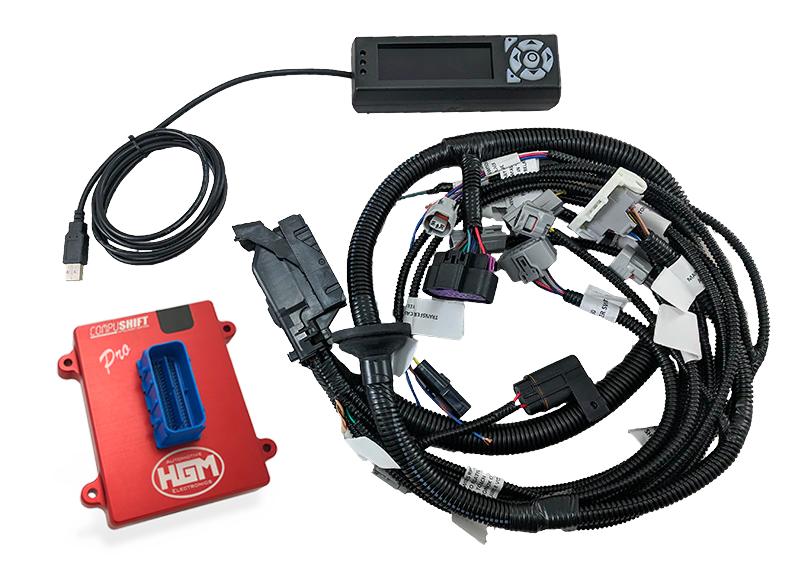

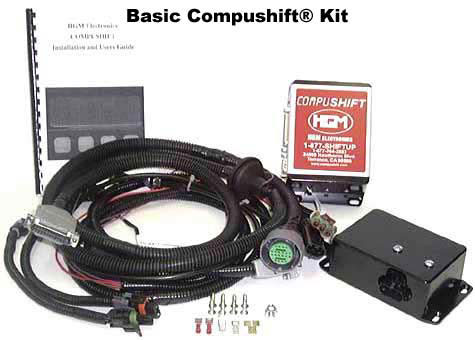

The kit includes all of the necessary cable harnesses and a handheld display

Supported Transmissions

  • GM 4L80E / GM4L85E
  • GM 4L60E / GM4L65E
  • GM 4L60E transaxle (Corvette)
  • Ford AODE
  • Ford 4R70W / 4R75W
  • Ford E40D
  • Ford 4R100
  • Ford 5R110 (2)

Optional Equipment

Complete kit
  $1180.00

Prices Subject to change and do not include shipping
